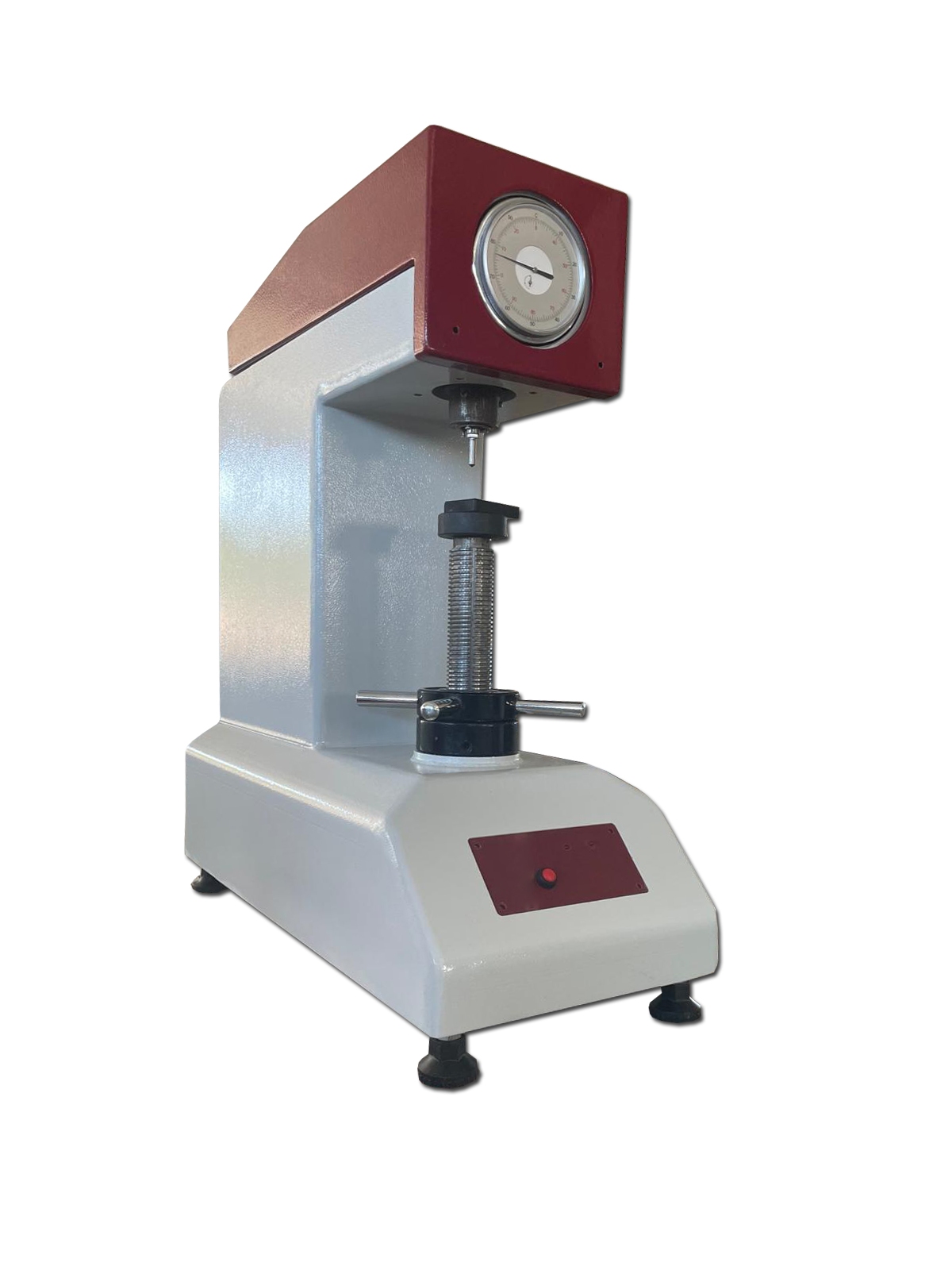

YGT RS150 Rockwell Hardness Tester

Rockwell hardness test is a simple instrument to test the hardness value of hard metals, carburized steels, quenched steels, hard cast irons, mild steels, Al-alloys, Cu-alloys and malleable irons according to Rockwell Principle according to ISO 6508 and ASTM E18. It measures the depth difference between the primary and testing load and convert the depth difference to the hardness value. These machines can be operated automatically. They are essential testing instruments for quality testing section, university and college, research institution and industrial laboratory.

Model YGT RS150 is superficial Rockwell test scales HRA, HRB, HRC (60/100/150kgf) with dial indicator and motor control loading.

Preliminary test force 10Kg

Total test force (60/100/150kgf)

Automatic (Loading/Dwell/Unloading)

Dial Hardness indication

Power supply AC220V 50/60HZ

Standard Delivery

Diamond Rockwell indenter with MPA Certification

Ø1.5875mm hardness ball indenter(1),

HRC Hardness Block, HRB Hardness Block
